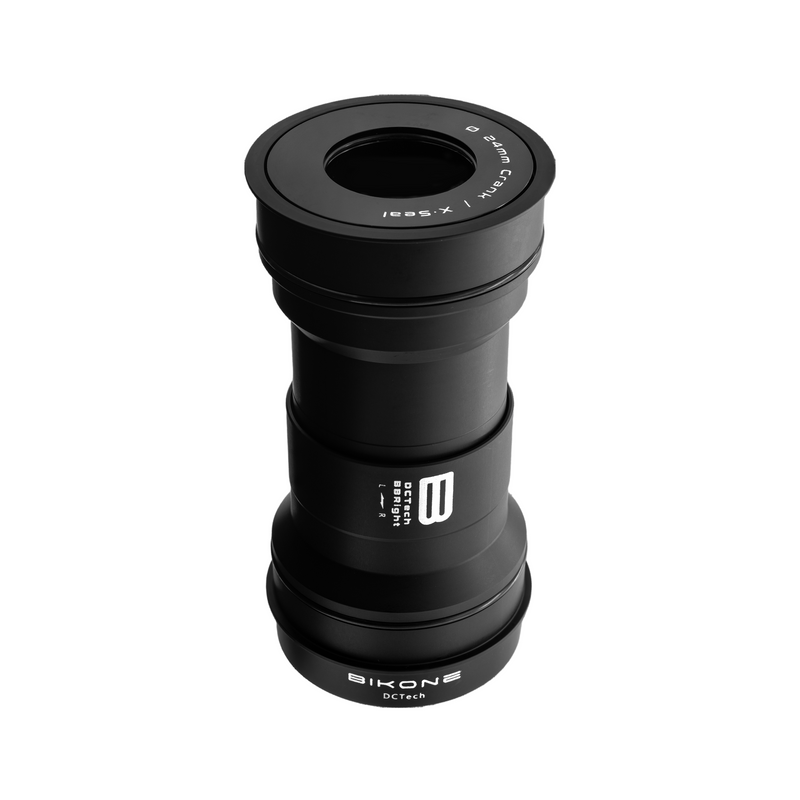

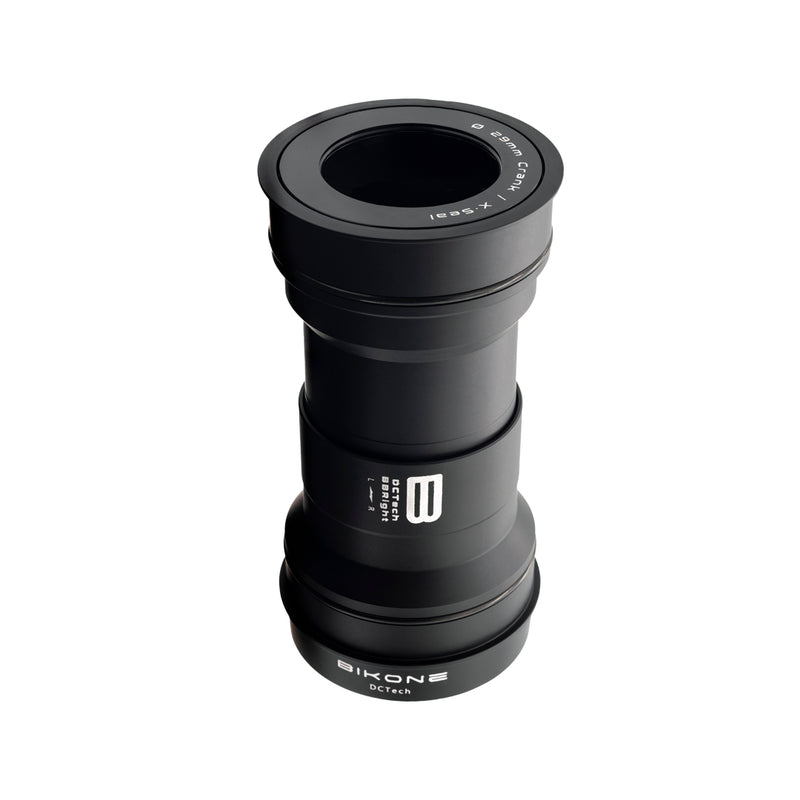

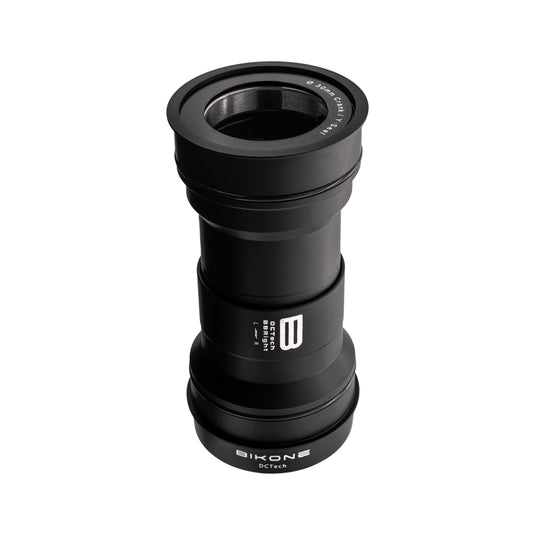

BIKONE - BBRight Bottom Bracket (46mm)

Bikone

BBRight - Commonly found on Cervelo and Factor bikes. The BB is asymmetric and 79mm wide. There are actually 2 versions of BBright. This 46mm version and the less popular 42mm version. This relates to the diameter of the bore in your frame.  For BBright the actual specified size is between 45.88mm and 45.96mm. You can learn more at BBright.net.  Because of this somewhat smaller bore the non drive side bearing can become restricted, but BIKONE has considered that in the design and bearing specification. The Drive Side bearing sits external to the frame.

Weight: 120g

Available in Ceramic or Steel Bearings and for Shimano (24mm) SRAM (29mm) or 30mm cranks.

Hybrid Ceramic Bearings, meaning Steel Races, with Ceramic Balls. Steal Bearings are all steel. Both made to ABEC 5 / P5 Precision Tolerance. The bearing uses 2RS (Two Rubber Seals)

For SRAM DUB wide cranksets you will need an additional spacer kit

Bearing:
Crank:
£255.00 GBP
£255.00 GBP £255.00 GBP
Sale Sold out
/
Tax included.
This is a pre order item. We will ship it when it comes in stock.
